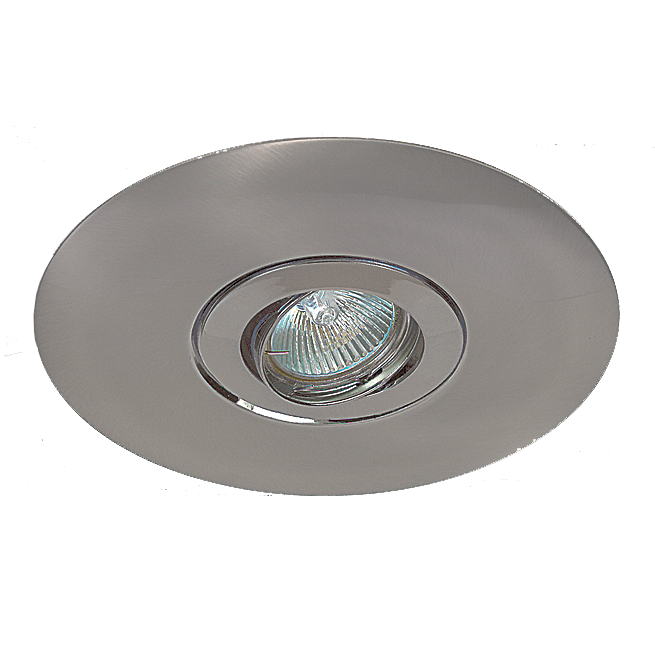

MR16 Tilt Large Flange Downlight
SV-TLTL-SC
RRP: $28.75
In Stock
ADD TO MY LISTCOLOURS
FEATURES
Large Flange Fitting - Perfect for conversions from incandescent to halogen where prevoius fittings have already been placed.

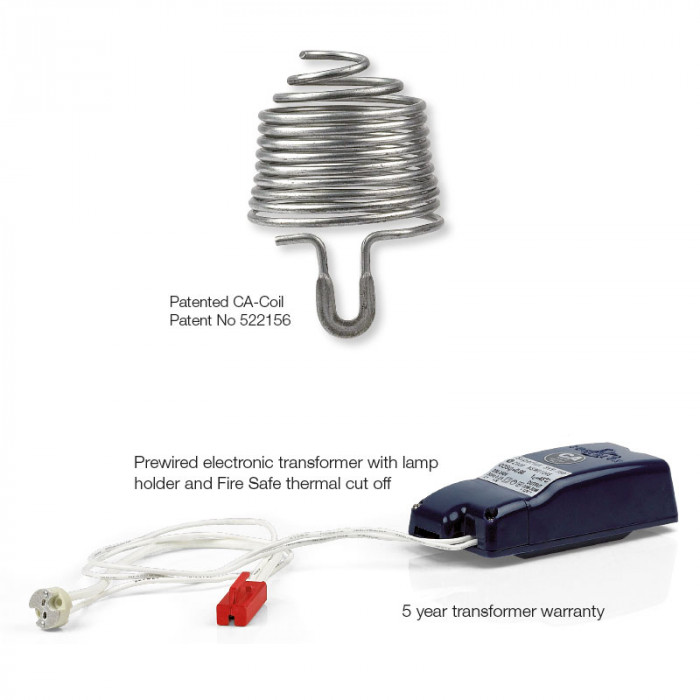

Patented CA-Coil, HIH lamp and Electronic transformer with lamp holder assembly with thermal cut off included
SPECIFICATIONS
Lamp included: Yes
Lamp holder type: MR16
Number of lamps: 1
Air / Moisture Transfer: Closed
Technology field: Halogen, LED Replaceable
Indoor / Outdoor: Indoor
Mounting type: Ceiling, Recessed
Colour: Satin Chrome
Downlight Classification: CA135
Showroom Locations: 91O
DIMENSIONS
Flange overall 186mmØ
Hole cut: 90
Cavity depth: 200
Side clearance: 100
TECHNICAL DATA
Total lumens: 525
Colour temp: 3,000K
Power supply: 220-240V, Double Insulated
Dimmable: Yes
CRI: 100
Wattage: 50 Max
Beam angle: 38°
Control gear: Included
