FEATURES

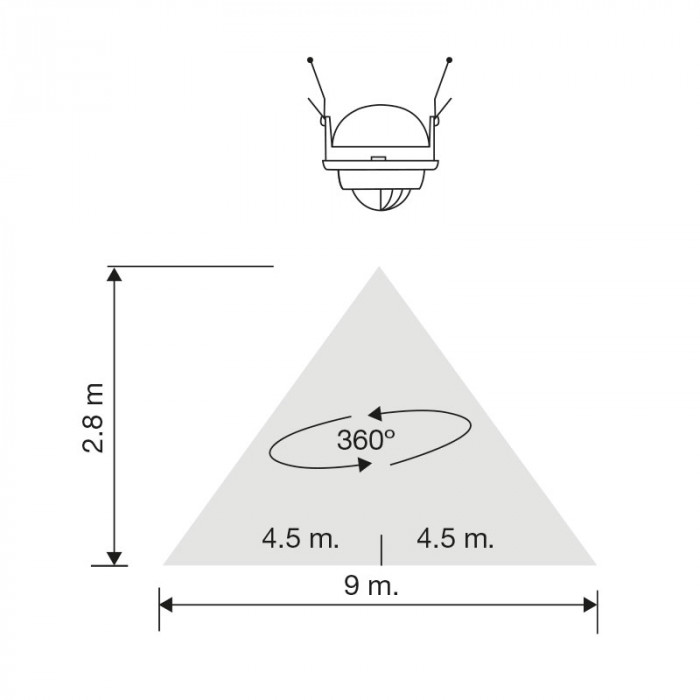

  • 9 metre 360º ceiling PIR motion detector
  • Recessed Mount
  • Adjustable time delay and lux settings
  • Detecting angle is adjustable from 30º to360º using 30º segment supplied cap
  • Digital technology PIR
  • Can be mounted outdoor under eaves etc
  • Max 1000 watt Incandescent
  • Max 400 watt Fluorescent
  • Max 300 watt LED

SPECIFICATIONS

IP Rating: IP54

Indoor / Outdoor: Indoor, Outdoor

Mounting type: Ceiling, Recessed

Showroom Locations: 68J

DIMENSIONS

70mmØ hole cut, 45mm cavity depth
79mmØ x 20mm depth below ceiling

Hole cut: 70

Cavity depth: 45

TECHNICAL DATA

Power supply: 220-240V, Double Insulated
