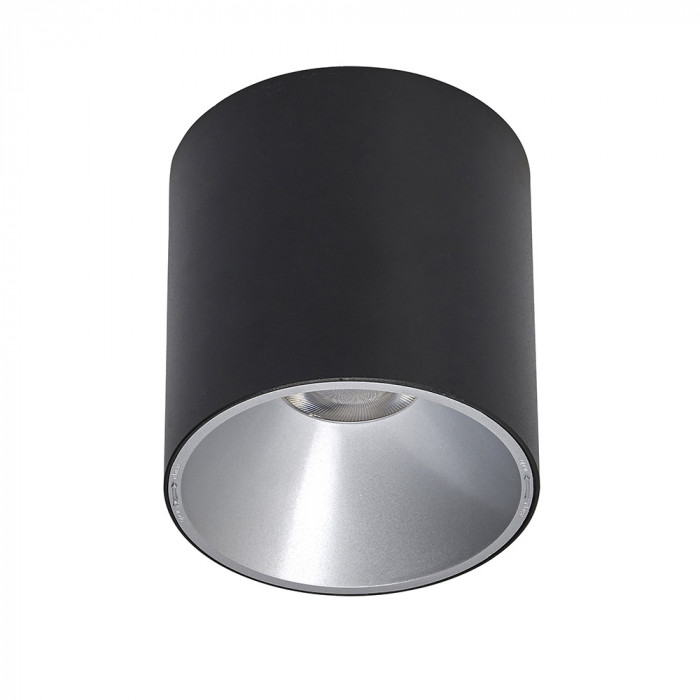

Equator LED 10W Surface Mount Downlights

LDLS115-BL

RRP: $149.96

In Stock

ADD TO MY LIST

COLOURS

Black White

ADD TO MY LIST ASSOCIATED PRODUCTS DOWNLOAD PHOTOMETRICS DOWNLOAD TECHNICAL SPECIFICATIONS PDF SDoC DOWNLOAD INSTRUCTION SHEETS

FEATURES

10Watt Integral LED.

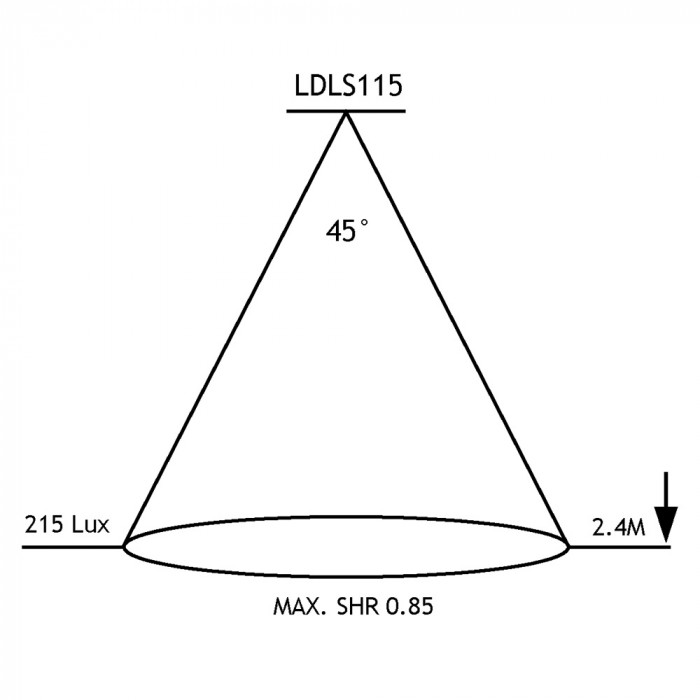

45° beam angle with spill light out to 90°.
Integral driver in base.
Dimmable with Trailing edge and Universal dimmers.
Dims down to 20% of total light output.
Less than 19% glare, Compliant to UGR <19 Standard.
Specified by Superlux to ensure quality light output & dimming.

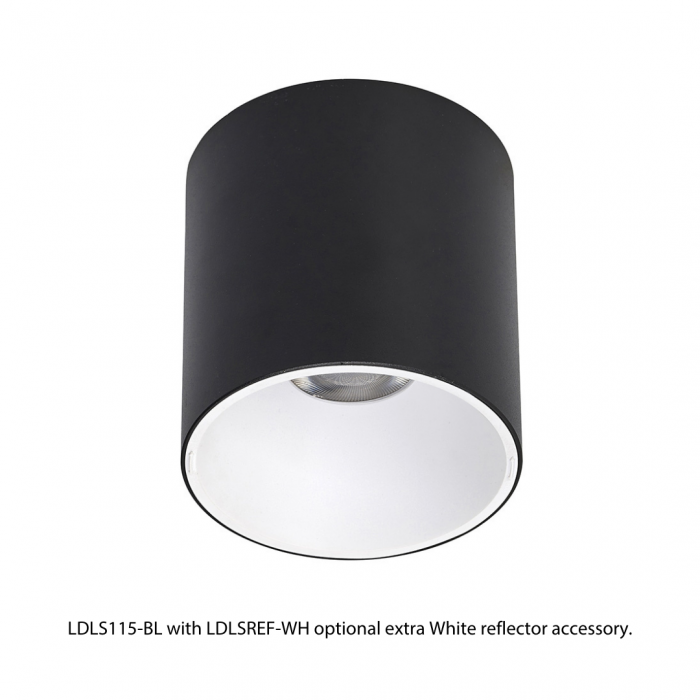

Available in Black with Silver Reflector or White with White Reflector. Other colour reflectors are available to be purchased separately.

SPECIFICATIONS

Material: Aluminium body, Plastic reflector

Lamp included: Yes

Number of lamps: 1

IP Rating: IP54

Technology field: LED

Indoor / Outdoor: Indoor

Mounting type: Ceiling

Colour: Black, Silver/Grey

Showroom Locations: 95O

DIMENSIONS

115mmØ x 120mmH

TECHNICAL DATA

Total lumens: 950

Colour temp: 3,000K

Power supply: 220-240V

CRI: 80

Wattage: 10

Beam angle: 45°

Control gear: Included

ASSOCIATED PRODUCTS

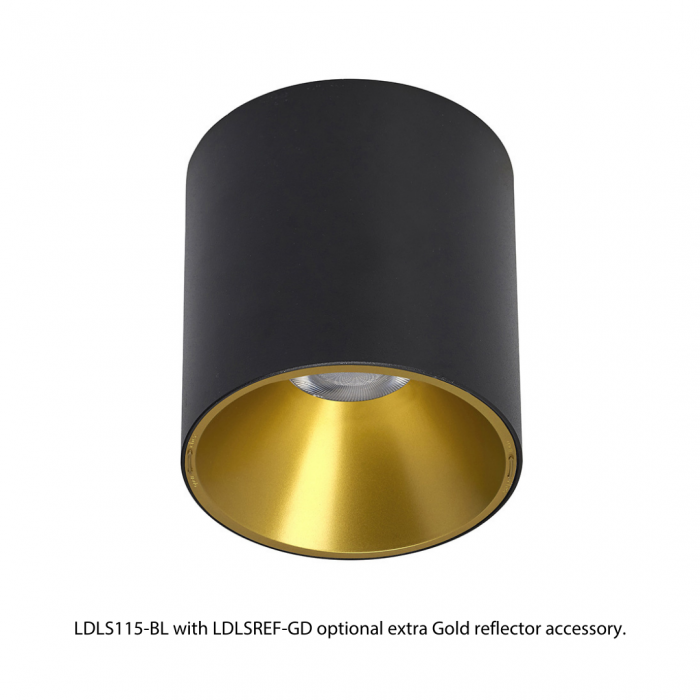

Optional Reflector for LDLS115 Surface Mount Downlights

LDLS-REF-GD

View Product >
