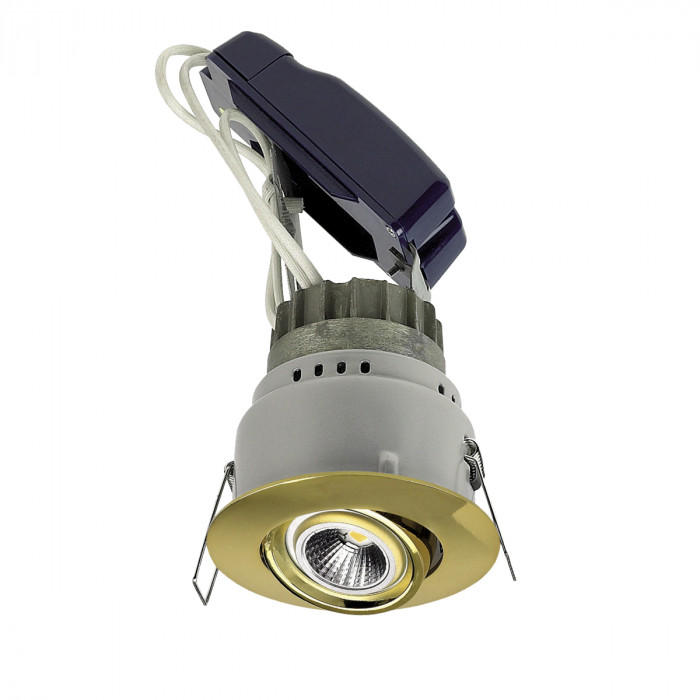

MR16 LED Fire Rated 30 Min Tiltable Downlight
LDLB90-GD
RRP: $86.94
In Stock
ADD TO MY LISTCOLOURS
PRODUCT VARIATIONS
FEATURES
- 6watt LED bulb comparable to 50watt halogen downlight
- Reflector bulb designed to give uniform light spread with no hot spots or demarcation lines in light beam
- Integral driver for easy installation
- Aluminium die cast face
- Both lamp and downlight have heat sink technology for effective thermal management
- Tiltable to 40º and fully rotatable
- 5 year transformer warranty
SPECIFICATIONS
Lamp included: Yes
Lamp holder type: MR16
Number of lamps: 1
Air / Moisture Transfer: Closed
Technology field: Halogen, LED Replaceable
Indoor / Outdoor: Indoor
Mounting type: Ceiling, Recessed
Colour: Gold
Downlight Classification: CA135
Showroom Locations: 92DD
DIMENSIONS
Flange 105mmØ
Hole cut: 90
Cavity depth: 210
Side clearance: 50
TECHNICAL DATA
Total lumens: 480
Colour temp: 3,000K
Power supply: 220-240V, Double Insulated
CRI: 82
Wattage: 6
Beam angle: 38°
Control gear: Included
