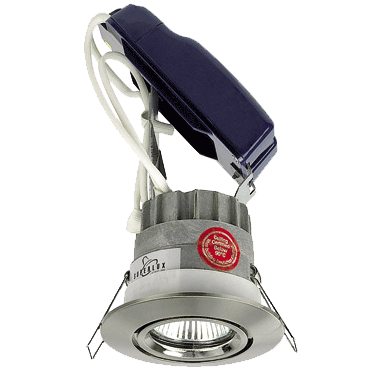

Integral Design Fixed MR16 Downlight in Satin Chrome
SVE75-SC
RRP: $28.06
In Stock
ADD TO MY LISTCOLOURS
FEATURES
- Thermal cut-off protection with auto reset function. Guards against installation faults or overlamping.
- Quick and economical installation - only one connection large looping mains terminal.
- Acoustic rating: for acoustic STC 55 ceilings space 1.6m minimum.
- For acoustic (RW) STC 57 and 58, space 2.5m minimum.
- Superlux recommends the use of trailing edge dimmers.
- HIH (High Intensity Halogen) lamp included, 30% power saving. 35W = 50W of illuminance.
- 5 year transformer warranty.
- ECG must not be installed on a circuit with inductive loads.
SPECIFICATIONS
Lamp included: Yes
Lamp holder type: MR16
Number of lamps: 1
Air / Moisture Transfer: Closed
Technology field: Halogen, LED Replaceable
Indoor / Outdoor: Indoor
Mounting type: Recessed
Colour: Satin Chrome
Downlight Classification: CA135
DIMENSIONS
- Trim 94mmØ.
Hole cut: 75
Cavity depth: 190
Side clearance: 50
TECHNICAL DATA
Total lumens: 525
Colour temp: 3,000K
Power supply: 220-240V
Dimmable: Yes
CRI: 100
Wattage: 35
Beam angle: 38°
